Navigator는 Raspberry Pi 4용 ROV 및 드론 비행 컨트롤러입니다. 여기에는 온보드 IMU, 나침반, 기압계 및 ADC 센서는 물론 16개의 PWM 출력과 수많은 직렬 및 I2C 확장 포트가 있습니다. Navigator는 BlueOS 소프트웨어와 함께 BlueROV2에서 사용되지만 다양한 로봇 응용 프로그램에도 사용할 수 있습니다!
CAUTION!) 재고가 없는 경우 해외 본사에서 수입하는 기간이 추가로 소요 될 수 있습니다.!!!
주문 전 재고 확인 연락 바랍니다.!
감사합니다.
Product Description

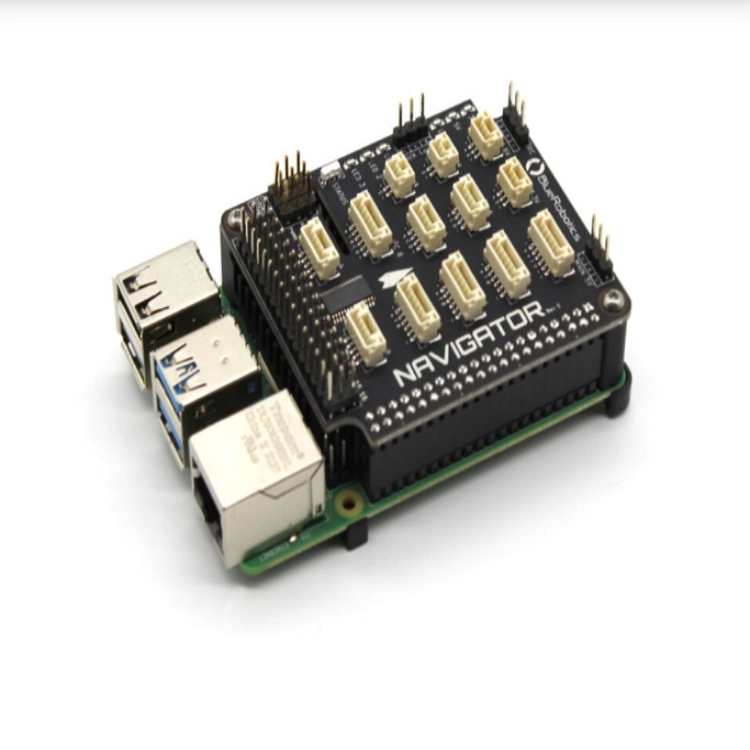

The Navigator is an expansion board that plugs into the Raspberry Pi 4 and turns it into a fully-featured flight controller, ready to power ROVs, USVs, drones, ground vehicles, and just about anything that moves!
At its core, the Navigator is a collection of inputs and outputs. It has inputs from onboard sensors, outputs to servos or speed controllers, and expansions ports that can be connected to external devices.
Onboard, the Navigator has:
- 6-axis IMU with accelerometers and gyroscopes for orientation
- Dual three-axis magnetometers for compass heading
- Barometer for altitude in air
- 16 servo PWM channel outputs
- Current and voltage ADC inputs
- Built-in leak detection for 2 probes
- RC receiver input (SBUS)
- RGB status LED
Additionally, the Navigator has expansion connectors available, all of which follow the Blue Robotics Connector Standard and are compatible with most industry autopilot accessories. It has the following expansion ports:
- 4 serial ports
- 2 I2C ports
- 2 16-bit analog-to-digital converter (ADC) ports
- External LED port compatible with Neopixel RGB LEDs
In addition, the Navigator has a number of important features that are worth highlighting:
- Dual power inputs with automatic power switching for redundancy
- 3.3V logic on all ports
- 5V tolerance on serial ports
